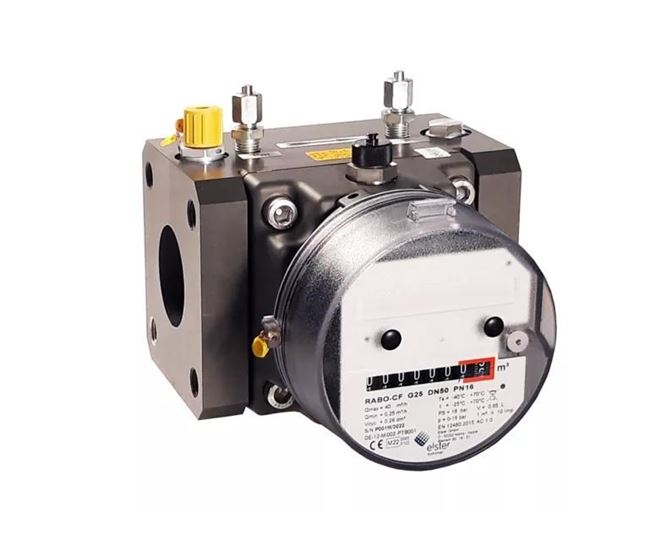

Honeywell RABO Compact Gas Meter

Honeywell Elster rotary gas meters offer high measuring ranges and a compact build, ensuring accuracy even in low or irregular gas flow conditions. The RABO series combines proven features from previous models, offering a comprehensive range of forward-looking attributes.

Operating on the positive displacement principle, rotary gas meters accurately measure volumes of gaseous media, unaffected by installation variables. They are ideal for compact measuring systems without an inlet section and are approved for custody transfer applications.

Key Features & Benefits:

- Available in meter sizes G10 to G40, with flow rates from 0.25 to 65 m3/h.

- Nominal sizes DN 25 to DN 50, with pressure ratings PN 10/16 and Class 150 in accordance with ASME B 16.5.

- Temperature range from -25°C to +70°C.

- Measuring ranges up to 1:200*.

- Aluminum housing available as Flange or Threat version, ensuring durability.

- Compact dimensions and a 5-year maintenance interval enhance convenience.

- Index can be rotated for horizontal and vertical installation flexibility.

- Optional index solutions such as Absolute ENCODER S1D.

- Approvals pursuant to MID/PED/ATEX Directives ensure compliance and safety.

The measurement procedure involves two rotating impellers mounted in a single housing, propelled by gas flow without touching. The gas volume is transferred to the outlet, defined by the cyclic volume. One rotation corresponds to a defined gas volume, with revolutions transferred to the mechanical index via gears and a magnetic coupler, allowing for precise adjustment.
